Liftmaster ATSW electric garage door openers commercial
LiftMaster logo

ATSW

LiftMaster logo

ATSW

Liftmaster ATSW electric garage door openers commercial

Features

The model ATSW (Avanced Trolley System Wi‑Fi) is designed for commercial doors with light‑duty cycle requirements. It is the perfect electric door opener for use on standard lift or low head room sectional doors up top 14' high, rated for 8 cycles per hour. The ATS meets all current federal and state laws and UL325 safety standards for residential and commercial applications.

  • Drive system: chain
  • Single phase: 115 V
  • Horsepower: ¾ HP
  • Motor overload protection
  • Electronic controls to make setup easy
  • Safety reverse / automatic door stop
  • Steel "I"-Beam trolley track for increase rigidity
  • Additional headroom required: 2 ½ po (51 mm)
  • Total length installed:
    • 8 ft rails = 140 in
    • 10 ft rails = 164 in
    • 12 ft rails = 189 in
    • 14 ft rails = 213 in
  • UL‑325 and CSA listed.
  • 1‑year warranty

Standard security systems

Your security, our priority!

The Protector system®

Project an invisible light beam across the garage door opening and automatically reverse the door if anything interrupts the beam while the door is going down. Sensing technology will stop the door from closing if contact is made with a person or object. Opener light turns on automatically when The Protector System's infrared beam is broken.

Alert-2-Close Warning System provides audible and visual warnings that the garage door is about to close when using the Timer-to-Close or remote closing features

LiftMaster protector system (41A5034)

Interior manual release handle

The ATSW includes a key release feature for instant access in case of power failure. And ail components are fully enclosed to greatly reduce the risk of injury.

Interior manual release handle

Security+ 2.0 TM

The Security+ 2.0 TM rolling code technology assures a new code is sent every time the remote control is used.

Standard Security plus

Warning

Garage doors and garage door openers can be dangerous if not installed and verified by a professional and not used properly. Children must be supervised by an adult when they are inside or in proximity of the garage door system.

The protector system®

LiftMaster protector system (41A5034)

Project an invisible light beam across the garage door opening and automatically reverse the door if anything interrupts the beam while the door is going down. Sensing technology will stop the door from closing if contact is made with a person or object. Opener light turns on automatically when The Protector System's infrared beam is broken.

Alert-2-Close Warning System provides audible and visual warnings that the garage door is about to close when using the Timer-to-Close or remote closing features


Interior manual release handle

Interior manual release handle

The ATSW includes a key release feature for instant access in case of power failure. And ail components are fully enclosed to greatly reduce the risk of injury.


Security+ 2.0 TM

Standard Security plus

The Security+ 2.0 TM rolling code technology assures a new code is sent every time the remote control is used.


Warning

Garage doors and garage door openers can be dangerous if not installed and verified by a professional and not used properly. Children must be supervised by an adult when they are inside or in proximity of the garage door system.

Included in package

Liftmaster ATSW electric garage door openers commercial
Liftmaster ATSW electric garage door openers commercial
Single Wall Button  (883LMW)
Single Wall Button (883LMW)

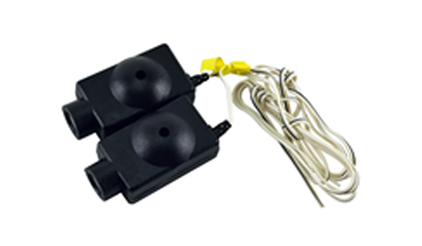

Protector System (41A4373ATS)
Protector System (41A4373ATS)
Steel I-Beam Trolley
Steel I-Beam Trolley according to door height
  • Appropriate 1 piece rail chain
  • Hardware bag for installation (includes all necessary hardware for the installation)
